Genuine Weldy — In Stock, Dubai

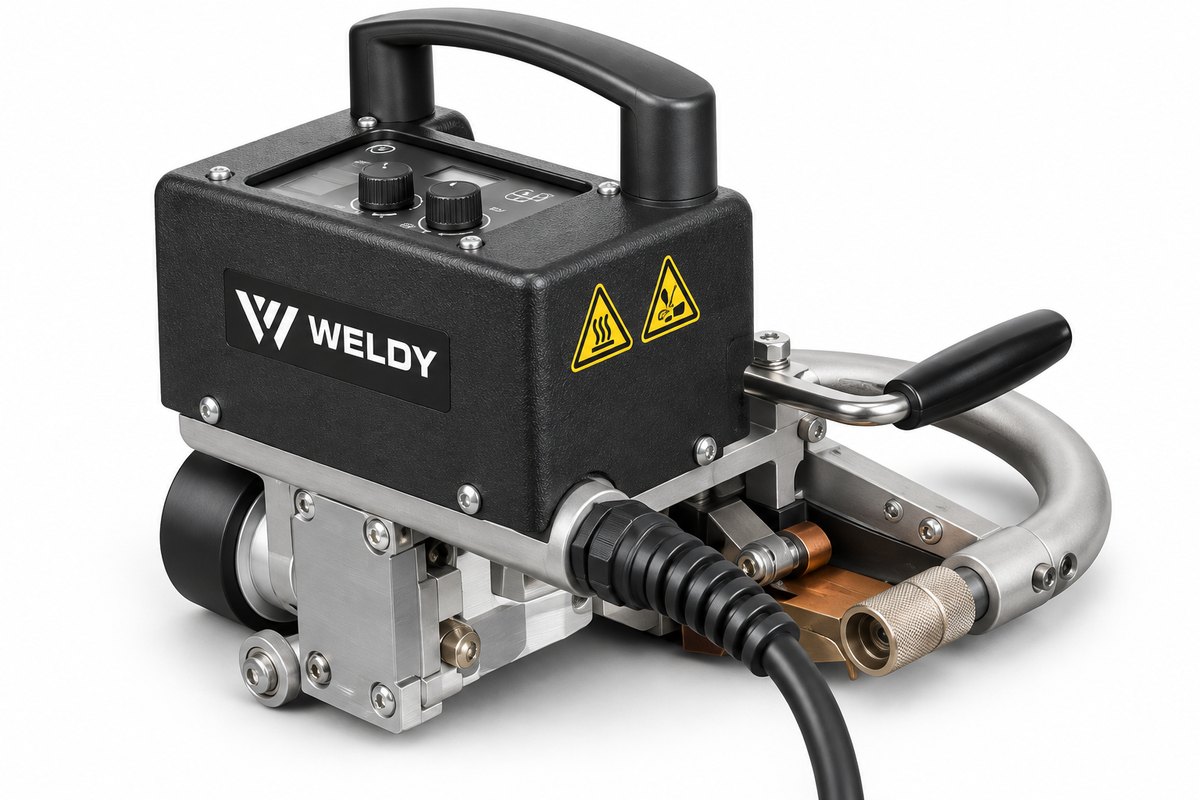

Weldy Miniwelder Geo2 — Lightweight Geomembrane Wedge Welder

The Weldy Miniwelder Geo2 is a quick, lightweight welding machine ideal for geomembranes from 0.5 to 1.5 mm — fish farms, water tanks, foundation sealing and many other industrial areas. Under 4 kg, it features chainless drive technology, automatic wedge positioning and intuitive control: temperature and speed activate via two buttons and adjust by dials, with two LEDs showing process status.

It produces the same 2×12 mm dual-track seam with test channel as larger machines — the portable, QA-compliant option in our Weldy UAE range where the WGW 300 is heavier than the job needs — supplied by your geomembrane welding machine supplier in Dubai.

Technical Data

Voltage	120 / 230 V~, 50/60 Hz
Max. power	800 W
Temperature	60 – 480°C
Hot wedge material	Copper / chrome steel
Weld seam width	2 × 12 mm (with test channel)
Max. overlap	100 mm
Speed	0.4 – 7.5 m/min
Dimensions (L × W × H)	228 × 228 × 170 mm
Weight	3.9 kg
Conformity / Protection	CE / Class I
Weldable materials	LDPE, PVC* (0.5–1.5 mm); TPO/FPO (0.7–1.5 mm); HDPE (0.4–1.0 mm). *PVC only with steel wedge
Delivery contents	Instruction manual, transport box, Allen key, cleaning brush
Availability	In stock — Dubai, UAE (GCC & Africa delivery)

Download Technical Datasheet (PDF)

Frequently Asked Questions

Geo2 or WGW 300 — which wedge welder?

The Geo2 (3.9 kg) suits liner up to 1.5 mm, fish farms, tanks and foundation sealing where portability matters. The WGW 300 handles HD-PE to 2.5 mm and long landfill or pond seams at up to 8.5 m/min.

Can it weld PVC?

Yes — with the steel hot wedge option (0.5–1.5 mm). Specify PVC work in your enquiry and we supply the correct wedge.

Which accessories are available?

Copper and steel hot wedges (56×36 mm) with test channel, silicone and steel drive rollers, and the miniwelder guide bar.

See also the thin-membrane Miniwelder Tex2 and Tex1, or the datasheet library.
