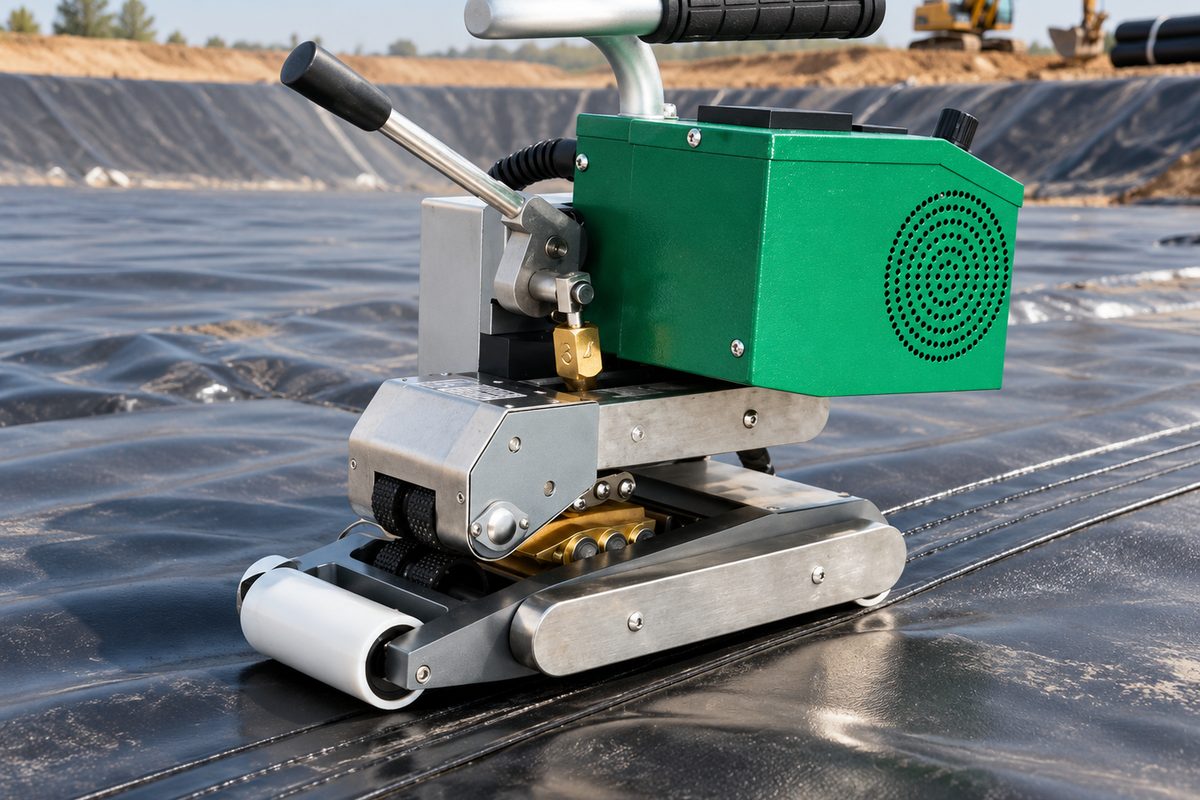

The IZ-900 is a self-propelled hot wedge welding machine for seaming HDPE, LDPE and PVC geomembranes. Two liner sheets pass over a precision-heated metal wedge and are pressed together between drive rollers, producing a continuous dual-track weld with a central air test channel — the seam type specified on landfill, reservoir, lagoon and tunnel lining projects worldwide.
Contractors buying a hdpe wedge welding machine in this region normally face a choice between costly European brands and unsupported grey imports. The IZ-900 sits deliberately between the two: dependable seaming performance, spare wedges and rollers held in Dubai, and commissioning help from the same team that supplies your HDPE liner rolls — the same geomembrane welding machine supplier in Dubai behind every product on this site.
| Model | IZ-900 |
|---|---|
| Voltage | 220 V, 50/60 Hz |
| Power | 2100 W |
| Welding speed | 1 – 7 m/min |
| Heating temperature | 50 – 550°C |
| Welding pressure | 100 – 1000 N (adjustable) |
| Material thickness | 1.0 – 3.0 mm (single layer film thickness) |
| Overlap width | 12 cm |
| Weld seam width | 16 mm × 2 tracks, cavity 12 mm (air test channel) |
| Weld strength | >95% of base material (tensile strength in shear direction) |
| Display | Dual digital display of temperature and speed |
| Overall weight | 13.0 kg |
| Certificate | CE |
| Availability | In stock — Dubai, UAE |
Download IZ-900 Datasheet (PDF)
The dual-track weld leaves an enclosed channel between the two weld tracks. Your QA team seals the seam ends, pressurises the channel and watches the gauge — stable pressure means a continuous, leak-free seam, documented for the consultant without destructive sampling of every panel. For crews seaming full-time, the premium Weldy WGW 300 wedge welding machine is also in stock. We explain the full test procedure and the machine's temperature/speed/pressure relationship during handover, and our comparison guide — hot wedge vs extrusion welding — helps your planners split the work between machines correctly.
A self-propelled seaming machine that draws two geomembrane sheets over a heated wedge and presses them between rollers, producing a continuous dual-track weld with an air-testable channel between the tracks.
HDPE, LDPE and PVC liner from 1.0 mm to 3.0 mm — covering the 1.0, 1.5 and 2.0 mm liners most commonly specified in the GCC and Africa.
We quote per enquiry, including spare wedges, rollers and freight to your location. Send the quotation form or WhatsApp +971 50 178 9490.
Yes — we are also an HDPE geomembrane supplier in the UAE, so liner rolls and the wedge welder can arrive on site together, matched by material and thickness.
Get the IZ-900 wedge welder, extrusion welder, hot air tools and liner in one quotation from Dubai.
