Which HDPE liner thicknesses do you supply?

We supply smooth and textured HDPE geomembrane from 0.75 mm to 3.0 mm, with 1.0 mm, 1.5 mm and 2.0 mm being the most specified for ponds, landfills and lagoons in the region.

Can you supply the welding machines together with the liner?

That is our core advantage: HDPE geomembrane rolls, wedge welders, extrusion welders, hot air tools and welding rod all come from one Dubai supplier, so materials and machines arrive matched and ready.

Materials Supply

HDPE Geomembrane Suppliers in UAE — Liner Sheets for GCC & Africa

Q: Do you deliver HDPE liner outside the UAE?

Yes. Alongside Dubai and the wider UAE, we arrange supply into Saudi Arabia, Qatar, Oman, Kuwait, Bahrain and African markets, coordinating rolls and welding equipment in one shipment.

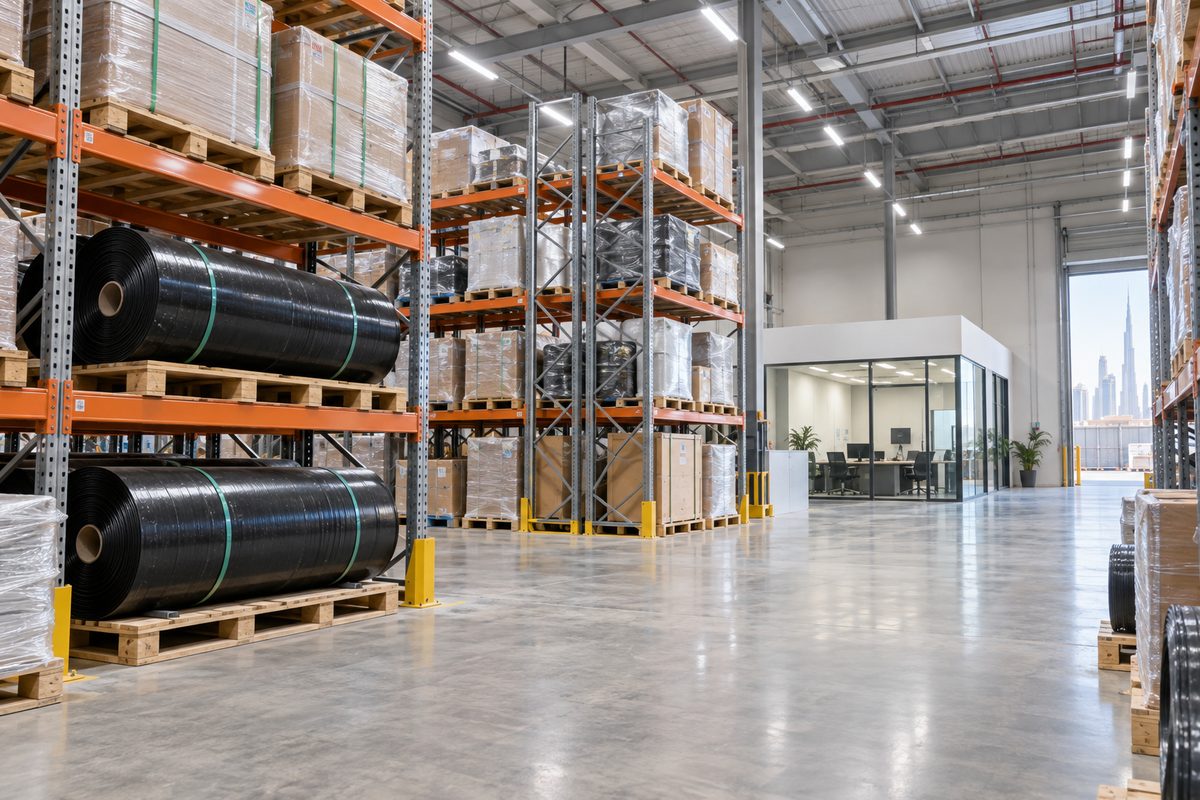

HDPE geomembrane liner rolls stocked in our Dubai warehouse — smooth and textured grades

Alongside welding equipment, Infinite Zone FZE LLC operates as an HDPE geomembrane supplier in the UAE, stocking smooth and textured high-density polyethylene liner from 0.75 mm to 3.0 mm. Rolls are manufactured to GRI-GM13 requirements with UV-stabilised virgin resin, suitable for landfill lining, leachate and evaporation ponds, irrigation reservoirs, aquaculture farms, tank bunds and tunnel waterproofing. Liner supply is the natural extension of our core business as an extrusion welder and welding machine supplier in Dubai.

Contractors searching for hdpe liner suppliers in Dubai or across Saudi Arabia usually have to source membrane from one company and welding machines from another — then hope they match. We remove that risk: liner, wedge welder, extrusion welder, hot air tools and rod all come from one Dubai source, specified together.

Range & Specifications

Material	HDPE (high-density polyethylene), virgin resin, UV stabilised
Surface	Smooth / single-side textured / double-side textured
Thickness	0.75, 1.0, 1.5, 2.0, 2.5, 3.0 mm
Standard	GRI-GM13 compliant; test certificates per batch
Roll width	7 m standard
Colour	Black standard; black/green and black/white on request
Supply area	UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa

Technical Data Sheet — HDPE Smooth Geomembrane

Key certified properties of our double-side smooth HDPE geomembrane, tested to ASTM methods per GRI-GM13 practice. Full datasheets and batch certificates are provided with every quotation and shipment.

Property (Test Method)	0.75 mm	1.00 mm	1.50 mm	2.00 mm	2.50 mm	3.00 mm
Density, g/cc (ASTM D1505)	0.940	0.940	0.940	0.940	0.940	0.940
Tensile strength at yield, kN/m (ASTM D6693)	11	15	22	29	37	44
Tensile strength at break, kN/m (ASTM D6693)	20	27	40	53	67	80
Elongation at break, % (ASTM D6693)	700	700	700	700	700	700
Tear resistance, N (ASTM D1004)	93	125	187	249	311	374
Puncture resistance, N (ASTM D4833)	240	320	480	640	800	960
Stress crack resistance NCTL, hrs (ASTM D5397)	≥500	≥500	≥500	≥500	≥500	≥500
Carbon black content, % (ASTM D1603)	2.0–3.0	2.0–3.0	2.0–3.0	2.0–3.0	2.0–3.0	2.0–3.0
Standard OIT, min (ASTM D3895)	≥120	≥120	≥120	≥120	≥120	≥120
High pressure OIT, min (ASTM D5885)	≥400	≥400	≥400	≥400	≥400	≥400
UV resistance, % HP-OIT retained after 1600 hrs (GRI GM11)	50	50	50	50	50	50
Seam shear strength, kN/m (ASTM D6392)	10	14	21	28	35	42
Seam peel strength — hot wedge, kN/m (ASTM D6392)	7.8	10.5	15.9	21.2	26.4	31.7
Seam peel strength — extrusion fillet, kN/m (ASTM D6392)	6.8	9	13.6	18.2	22.8	27.2
Roll width, m	7	7	7	7	7	7
Roll length, m	280	210	140	105	84	70
Roll area, m²	1,960	1,470	980	735	588	490

Note the seam property rows: these are the values your hot wedge and extrusion fillet welds are tested against on site — one more reason to take liner and welding machines from the same supplier.

Applications

Environmental containment — landfill cells and caps, leachate ponds, sludge lagoons.
Water infrastructure — irrigation reservoirs, canals, artificial lakes, tunnel waterproofing.
Aquaculture — fish and shrimp pond liners in smooth HDPE.
Industry — tank farm bunds, evaporation ponds, mining heap leach pads.
Landscaping — decorative ponds and root protection membranes.

Why One Source Matters

Every geomembrane project lives or dies on its seams. When the liner resin, welding rod and machine settings are specified together, trial seams pass first time and QA runs smoothly; when they come from three vendors, the site engineer inherits the mismatch. Because we supply both the membrane and the machines that weld it, our quotations arrive as a complete, compatible package — and our guide to choosing an HDPE geomembrane supplier shows exactly what to verify before any order. For a market-wide view, our comparison of HDPE geomembrane suppliers in the UAE ranks us alongside seven competitors. For thinner membranes and films, see the thin membrane welding guide.

Frequently Asked Questions

Which HDPE liner thickness do I need?

1.0 mm suits most ponds and reservoirs; 1.5–2.0 mm is standard for landfills and industrial containment; 0.75 mm suits lighter-duty ponds and temporary works. Share your application and we will confirm against the project specification.

Do you deliver HDPE geomembrane outside the UAE?

Yes — regular supply into Saudi Arabia, Qatar, Oman, Kuwait, Bahrain and African markets, with export documentation and freight arranged from Dubai.

Can liner and welding machines ship together?

That is our standard offer: rolls, wedge welder, extrusion welder, hot air gun and rod in one consolidated shipment, matched by material grade and thickness.

How do I get an HDPE liner price?

Send the thickness, surface type, quantity in m² and delivery location via the contact page or WhatsApp +971 50 178 9490 for a same-day quotation. You can pre-estimate quantities with the free geomembrane & welding rod calculator.
