Genuine Weldy — In Stock, Dubai

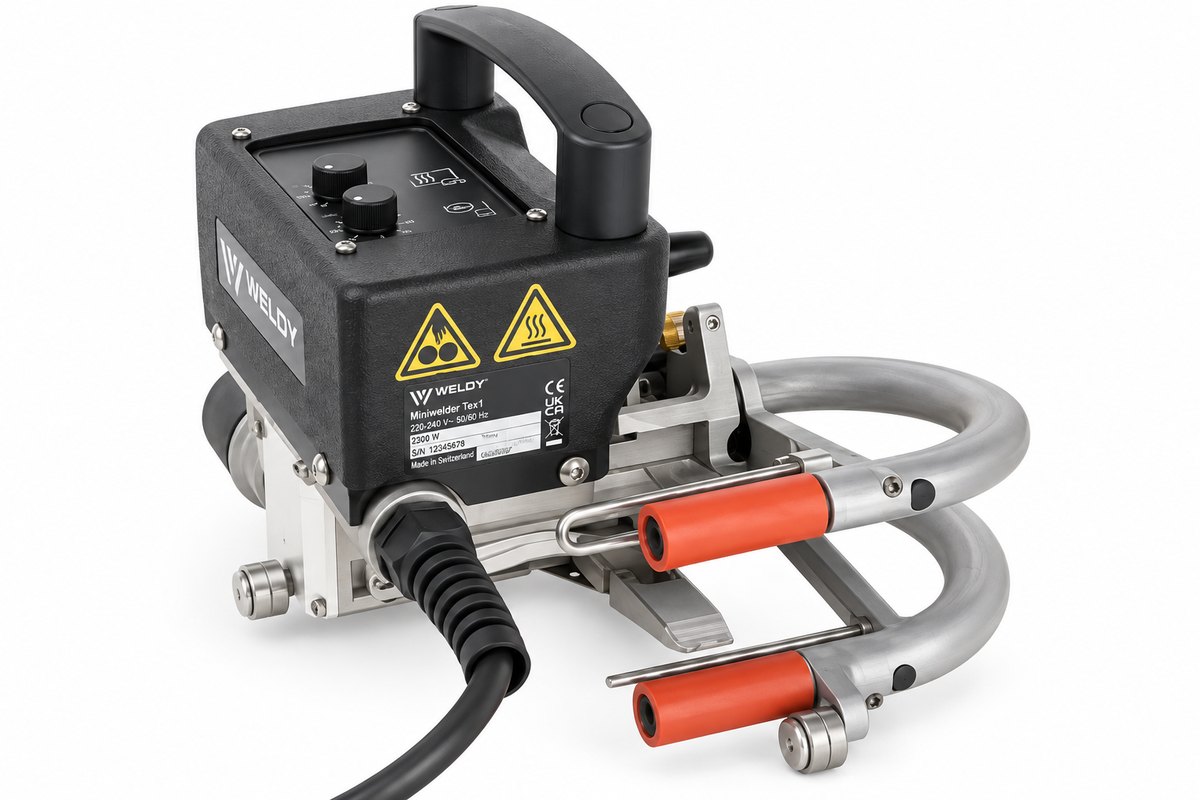

Weldy Miniwelder Tex1 — Superlight Welder for Thin Films

The Weldy Miniwelder Tex1 is the solution for welding very thin films. Its innovative ball wedge suits almost any foil or membrane from 0.05 to 1.0 mm, and the control system makes start-up straightforward. Lightweight at 3.5 kg with chainless drive technology and speeds to 7.5 m/min, it is the affordable specialist for greenhouse films, agricultural covers, pond liners and industrial fabrics.

Available from Dubai stock in our Weldy UAE range, alongside the heavier geomembrane machines at your plastic welding equipment supplier in Dubai.

Technical Data

Voltage	230 V~, 50/60 Hz
Max. power	300 W
Temperature	60 – 480°C
Hot wedge material	Aluminium, hard anodized (ball wedge)
Hot wedge width	15 mm
Max. overlap	100 mm
Speed	0.4 – 7.5 m/min
Dimensions (L × W × H)	228 × 228 × 170 mm
Weight	3.5 kg
Conformity	CE
Weldable materials	PE, PVC, TPO, PP
Material thickness	0.05 – 1.0 mm
Delivery contents	Instruction manual, transport box, Allen key, cleaning brush
Availability	In stock — Dubai, UAE (GCC & Africa delivery)

Download Technical Datasheet (PDF)

Frequently Asked Questions

How thin can the Tex1 weld?

Down to 0.05 mm foils thanks to the ball wedge — the thinnest capability in the miniwelder family.

Typical uses?

Greenhouse and agricultural films, pond and cover fabrics, thin industrial membranes and packaging materials.

What spares should I keep?

A complete 15 mm aluminium heating wedge, silicone drive rollers and the guide bar — all stocked in Dubai.

Our thin film welding guide covers technique for materials this light. Welding thicker membrane? Compare the Tex2 and Geo2, or open the datasheet library.
